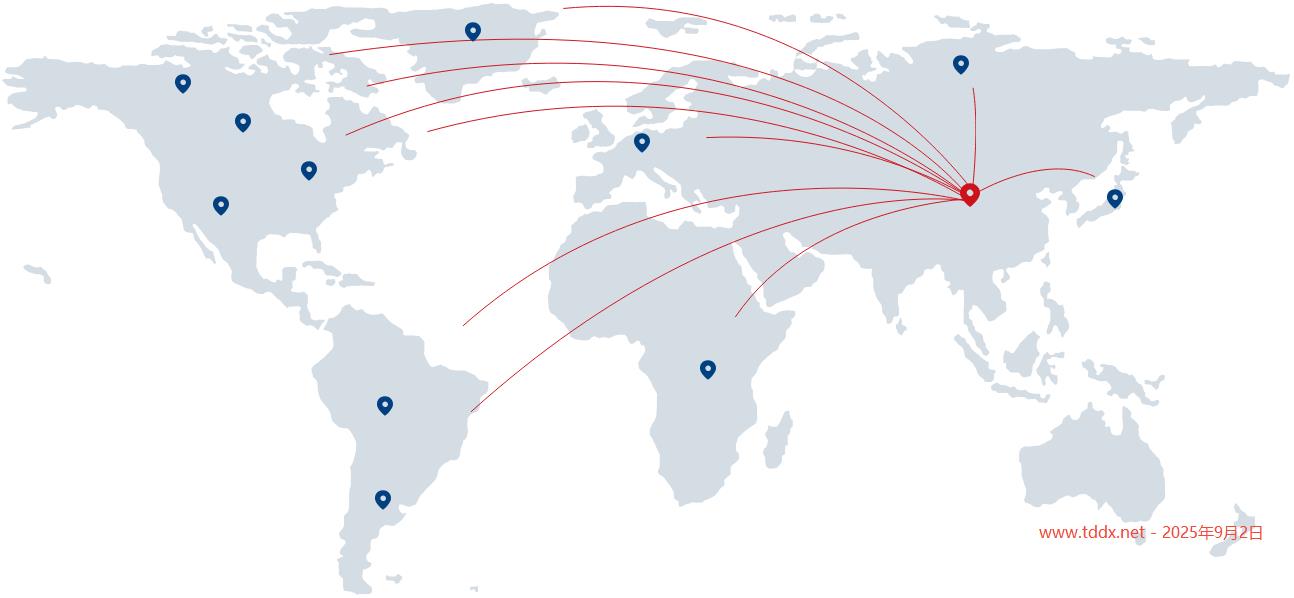

平面地图标注点线条连接效果。常用于公司的子公司或办事处在地图上标注点的效果，线条由总公司的标注点动态发散至各子公司或公事处，实现关联性的效果。
HTML代码：
<section id="global"> <div class="box" data-aos="fade-up"> <article class="item"> <div class="dot"></div> <div class="info"> <!--弹窗信息--> </div> <div class="svgs"> <div class="line"> <svg viewBox="0 0 147 28"> <path d="M1.221,27.592 C1.221,27.592 93.172,-30.117 146.627,24.334 "/> </svg> </div> <div class="line"> <svg viewBox="0 0 11 128"> <path d="M7.221,128.592 C7.221,128.592 18.777,28.450 0.711,1.526 "/> </svg> </div> <div class="line"> <svg viewBox="0 0 332 63"> <path d="M332.221,63.678 C332.221,63.678 199.326,-23.181 1.262,9.376 "/> </svg> </div> <div class="line"> <svg viewBox="0 0 503 190"> <path d="M503.306,190.505 C503.306,190.505 320.289,-69.237 0.899,19.998"/> </svg> </div> <div class="line"> <svg viewBox="0 0 794 166"> <path d="M794.136,166.850 C794.136,166.850 610.325,-100.723 0.918,46.300 "/> </svg> </div> <div class="line"> <svg viewBox="0 0 735 141"> <path d="M736.306,140.592 C736.306,140.592 453.864,-111.599 1.684,62.397 "/> </svg> </div> <div class="line"> <svg viewBox="0 0 667 99"> <path d="M667.306,99.678 C667.306,99.678 366.469,-98.539 1.047,70.354 "/> </svg> </div> <div class="line"> <svg viewBox="0 0 758 125"> <path d="M759.221,121.678 C759.221,121.678 398.503,-151.382 1.812,126.021 "/> </svg> </div> <div class="line"> <svg viewBox="0 0 592 223"> <path d="M593.306,16.592 C593.306,16.592 233.827,-79.580 1.919,224.024 "/> </svg> </div> <div class="line"> <svg viewBox="0 0 597 305"> <path d="M598.392,4.505 C598.392,4.505 324.592,-46.590 1.579,306.423 "/> </svg> </div> <div class="line"> <svg viewBox="0 0 267 172"> <path d="M268.221,1.592 C268.221,1.592 60.274,7.618 2.369,173.185 "/> </svg> </div> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> <article class="item"> <div class="dot"></div> <div class="info"> </div> </article> </div> </section>
CSS代码：
/*global*/
html {
font-size:100px;
}
#global {
width:14.4rem;
margin:0 auto;
.box {
width: 13rem;
margin:0.6rem auto 0;
max-width: 100%;
background: url(../images/global.svg) no-repeat center center; //global.svg是背景地图，自行准备
background-size: contain;
position: relative;
&:after {
display: block;
content: '';
padding-bottom:(597/1300*100%);
}
}
.dot {
width: 0.16rem;
background: url(../images/point_blue.svg) no-repeat center center; //point_blue.svg是蓝色的标注点，自行准备
background-size: contain;
&:after {
display: block;
content: '';
padding-bottom:(21/16*100%);
}
}
/*弹窗样式*/
.info {
position: absolute;
left:(-15em/16);
top:~'calc(100% + 1.0625em)';
background-color: #fff;
border-radius: (10em/16);
padding:(35em/16) (40em/16) (40em/16);
width:(335em/16);
box-shadow: 0 (4em/16) (32em/16) rgba(0,51,153,0.12);
display: none;
&:before {
.after;
left:(20em/16);
bottom:100%;
border-bottom: (15em/16) solid #fff;
border-right: (15em/16) solid transparent;
border-left: (6em/16) solid transparent;
}
}
/*弹窗样式*/
.item {
position: absolute;
transform: translate(-50%,-50%);
cursor: pointer;
z-index: 2;
&:nth-child(1) {
left:(977/1300*100%);
top:(193.5/597*100%);
.dot {
background-image: url(../images/point_red.svg);//point_red.svg是色色的标注点，区别总部，自行准备
width: 0.2rem;
}
}
&:nth-child(2) {
left:(1123/1300*100%);
top:(197.5/597*100%);
}
&:nth-child(3) {
left:(646/1300*100%);
top:(141/597*100%);
}
&:nth-child(4) {
left:(968/1300*100%);
top:(62.5/597*100%);
}
&:nth-child(5) {
left:(475/1300*100%);
top:(29/597*100%);
}
&:nth-child(6) {
left:(183/1300*100%);
top:(82/597*100%);
}
&:nth-child(7) {
left:(243/1300*100%);
top:(121/597*100%);
}
&:nth-child(8) {
left:(310/1300*100%);
top:(170/597*100%);
}
&:nth-child(9) {
left:(221/1300*100%);
top:(205/597*100%);
}
&:nth-child(10) {
left:(386/1300*100%);
top:(407/597*100%);
}
&:nth-child(11) {
left:(384/1300*100%);
top:(501/597*100%);
}
&:nth-child(12) {
left:(712/1300*100%);
top:(370/597*100%);
}
&:nth-child(n+10){
.info {
top:auto;
bottom:~'calc(100% + 1.0625em)';
&:before {
bottom:auto;
top:100%;
border-bottom:none;
border-top: (15em/16) solid #fff;
}
}
}
&.active {
z-index: 5;
}
}
.svgs {
svg {
position: absolute;
left:0;
top:0;
width: 100%;
height: 100%;
transition: all 3s;
}
path {
fill: none;
stroke-width: 0.01rem;
stroke: var(--main-color);
stroke-linejoin:miter;
stroke-linecap:butt;
fill-rule:evenodd;
}
.line {
position: absolute;
pointer-events: none;
&:after {
display: block;
content: '';
}
&:nth-child(1){
width: 1.47rem;
left:(11/20*100%);
top:(-13/25*100%);
transform-origin: left center;
&:after {
padding-bottom:(28/147*100%);
}
svg {
stroke-dasharray:155;
stroke-dashoffset:147;
}
}
&:nth-child(2){
width: 0.11rem;
bottom:(16/25*100%);
left:(5/20*100%);
transform-origin: right bottom;
&:after {
padding-bottom:(128/11*100%);
}
svg {
stroke-dasharray:128;
stroke-dashoffset:128;
}
}
&:nth-child(3){
width: 3.32rem;
bottom:(10/25*100%);
right:(10/20*100%);
transform-origin: right bottom;
&:after {
padding-bottom:(63/332*100%);
}
svg {
stroke-dasharray:335;
stroke-dashoffset:335;
}
}
&:nth-child(4){
width: 5.03rem;
bottom:(14/25*100%);
right:(5/20*100%);
transform-origin: 98% bottom;
&:after {
padding-bottom:(190/503*100%);
}
svg {
stroke-dasharray:575;
stroke-dashoffset:575;
}
}
&:nth-child(5){
width: 7.94rem;
bottom:(6/25*100%);
right:(7/20*100%);
transform-origin: 99% 92%;
&:after {
padding-bottom:(166/794*100%);
}
svg {
stroke-dasharray:840;
stroke-dashoffset:840;
}
}
&:nth-child(6){
width: 7.35rem;
bottom:(6/25*100%);
right:(7/20*100%);
transform-origin: 99% 92%;
&:after {
padding-bottom:(141/735*100%);
}
svg {
stroke-dasharray:780;
stroke-dashoffset:780;
}
}
&:nth-child(7){
width: 6.67rem;
bottom:(6/25*100%);
right:(7/20*100%);
transform-origin: 99% 92%;
&:after {
padding-bottom:(99/667*100%);
}
svg {
stroke-dasharray:690;
stroke-dashoffset:690;
}
}
&:nth-child(8){
width: 7.58rem;
bottom:(4/25*100%);
right:(8/20*100%);
transform-origin: 99% 92%;
&:after {
padding-bottom:(125/758*100%);
}
svg {
stroke-dasharray:805;
stroke-dashoffset:805;
}
}
&:nth-child(9){
width: 5.92rem;
top:(4/25*100%);
right:(8/20*100%);
transform-origin: 99% 1%;
&:after {
padding-bottom:(223/592*100%);
}
svg {
stroke-dasharray:665;
stroke-dashoffset:665;
}
}
&:nth-child(10){
width: 5.97rem;
top:(14/25*100%);
right:(8/20*100%);
transform-origin: 98% -1%;
&:after {
padding-bottom:(305/597*100%);
}
svg {
stroke-dasharray:683;
stroke-dashoffset:683;
}
}
&:nth-child(11){
width: 2.67rem;
top:(14/25*100%);
right:(8/20*100%);
transform-origin: 99% 1%;
&:after {
padding-bottom:(172/267*100%);
}
svg {
stroke-dasharray:335;
stroke-dashoffset:335;
}
}
}
}
.current {
.svgs {
.line {
&:nth-child(n+1){
svg {
stroke-dashoffset:0;
}
}
}
}
}
}
@media only screen and (max-width:1024px) {
#global {
.item {
&:nth-child(-n+3) {
.info {
left:auto;
right: (-15em/16);
&:before {
left:auto;
right: (20em/16);
border-left-width: (15em/16);
border-right-width: (6em/16);
}
}
}
}
.svgs {
.line {
transform: scale(0.82);
}
}
}
}
@media only screen and (max-width:750px) {
#global {
.info {
font-size: 0.14rem;
padding:1.5em 2em 2em;
}
.svgs {
.line {
transform: scale(0.35);
}
}
}
}jQuery代码：
/**/
var $global = $('#global');
var $globalTop = $global.offset().top - $(window).height()/2;
$(window).scroll(function(){
if($(this).scrollTop() > $globalTop){
$global.find('.box').addClass('current');
}else{
$global.find('.box').removeClass('current');
}
}).trigger('scroll');
$(window).resize(function(){
if($(this).width() > 1024){
$global.find('.item').on('mouseenter mouseleave');
$global.find('.item').mouseenter(function(){
$(this).addClass('active').find('.info').stop().fadeIn('fast');
}).mouseleave(function(){
$(this).removeClass('active').find('.info').stop().hide();
});
}else{
$global.find('.item').off('mouseenter mouseleave');
$global.find('.item').off('click').click(function(){
$(this).toggleClass('active').find('.info').stop().fadeToggle('fast');
$(this).siblings('.item').removeClass('active').find('.info').hide();
});
}
}).trigger('resize');注：以上代码只适合固定标注点的效果，如果是动态添加的，则不太适合。
